F Series：3~15KM LASER RANGEFINDER MODULE
Product Description
Laser rangefinder is a device used to measure the distance to a target by detecting the return signal of the emitted laser, thus determining the target distance information. This series of technology is mature, with stable performance, capable of measuring various static and dynamic targets, and can be applied to various ranging devices.
The LumiSpot 1535nm F-series laser rangefinder is an upgraded and optimized version of the original 1535nm A-series, featuring a smaller size, lighter weight (LSP-LRS-0310F-04 weighs only 33g), higher ranging accuracy, stronger stability, and compatibility with multiple platforms. Key functions include single pulse ranging and continuous ranging, distance selection, front and rear target display, self-test function, and continuous ranging frequency adjustable from 1 to 10Hz. This series offers different products to meet varying range requirements (from 3km to 15km) and can be used as a part of electro-optical reconnaissance systems on various platforms such as ground vehicles, lightweight portable devices, airborne, naval, and space exploration applications.
Lumispot technology boasts a complete manufacturing process, from precise chip soldering and automated reflector adjustments to high and low-temperature testing, and final product inspection, ensuring product quality. We can provide industrial solutions for customers with different needs, and specific data can be downloaded below. For more product information or custom requests, please feel free to contact us.

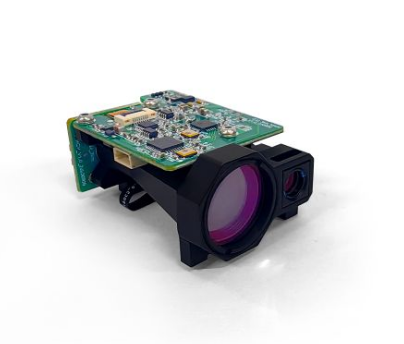

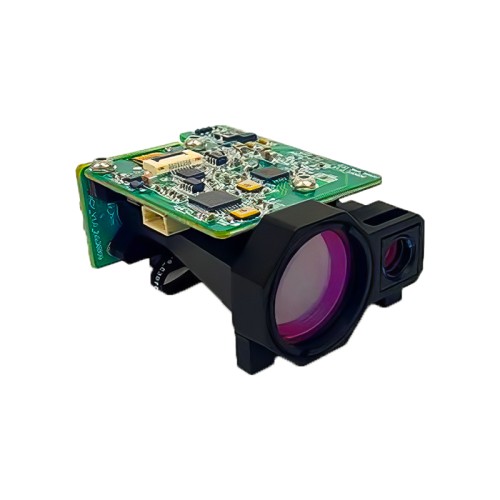

LSP-LRS-0310F-04 laser range finder module is a laser range finder module developed based on the 1535nm erbium laser independently developed by Lumispot it adopts single pulse TOF ranging mode and has a maximum measuring range of >3km.It is composed of laser, transmitting optical system receiving optical system and control circuit board, and communicates with host computer through TTL/RS422 serial port provides host computer test software and communication protocol, which is convenient for users to develop the second time. lt has the characteristics of small size, light weight stable performance, high impact resistance, first-class eye safety, etc., and can be applied to hand-held, vehicle-mounted, pod and other photoelectric equipment.

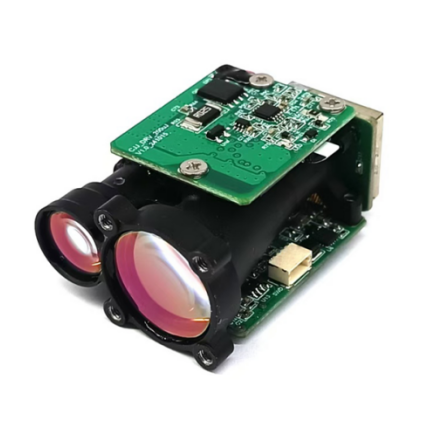

The LSP-LRS-0510F laser rangefinder module is a laser ranging module developed based on our company's independently researched and developed 1535nm erbium laser, It adopts a single-pulse Time-of-Flight (TOF)ranging method with a maximum ranging distance of ≥5km. Composed of a laser, transmitting optical system, receiving optical system, and control circuit board, it communicates with the host computer through a TTL serial port. It provides host computer test software and communication protocols,facilitating user secondary development. It boasts features such as small size.light weight, stable performance, high shock resistance, and Class 1 eye safety.

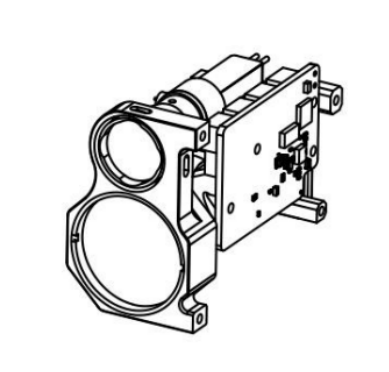

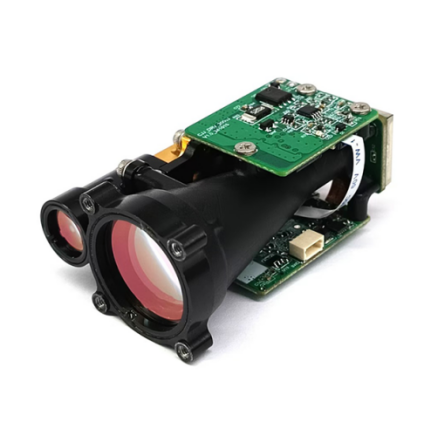

The LSP-LRS-0610F laser rangefinder module is a laser ranging module developed based on our company's independently researched and developed 1535nm Erbium laser. lt adopts a single-pulse Time-of-Flight (TOF)ranging method with a maximum ranging distance of ≥6km. Composed of a laser, transmitting optical system, receiving optical system, and control circuit board, it communicates with the host computer through RS422 serial port. It provides host computer test software and communication protocols,facilitating user secondary development. It boasts features such as small size,light weight, stable performance, high shock resistance, and Class 1 eye safety.

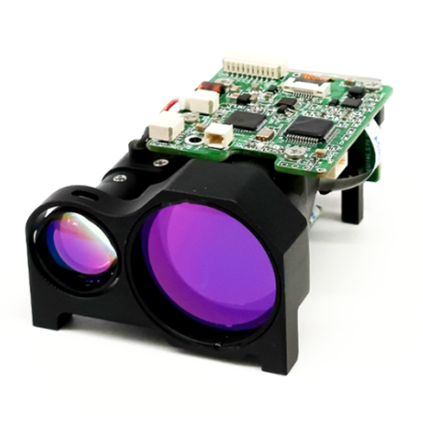

The LSP-LRS-0810F laser rangefinder module is developed based on our self-designed 1535nmerbiumlaser.It adopts a single-pulse TOF(Time-of-Flight) ranging method, with a maximum measurement range of >8km. The module consists of the laser, transmission optical system, receiving optical system, and control circuit board. lt communicates with the host computer via RS422serial port and provides test software and communication protocols for easy secondary development by users. Themodule features small size, light weight, stable performance, high impactresistance, and is Class 1 eye-safe.

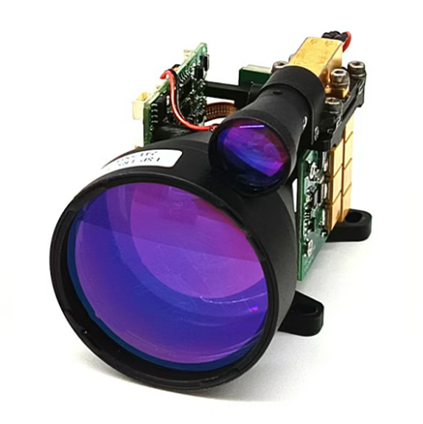

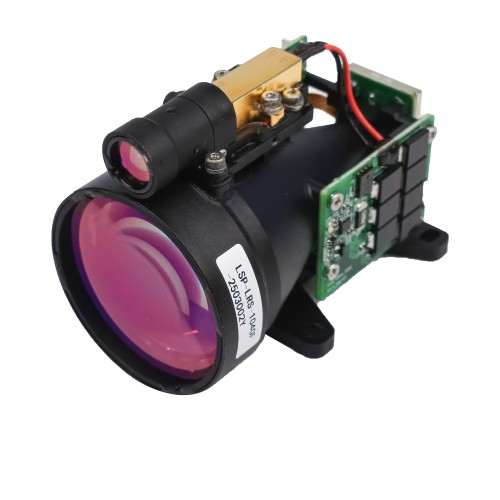

The LSP-LRS-1010F laser rangefinder module is developed based on our self-designed 1535nm erbium laser. It adopts a single-pulse TOF(Time-of-Flight) ranging method, with a maximum measurement range of >10km. The module consists of the laser, transmission optical system, receiving optical system, and control circuit board. It communicates with the host computer via RS422serial port and provides test software and communication protocols for easy secondary development by users. The module features small size, light weight, stable performance, high impact resistance,and is Class 1eye-safe. lt can be applied in handheld vehicle-mounted, and pod-based electro-optical equipment.

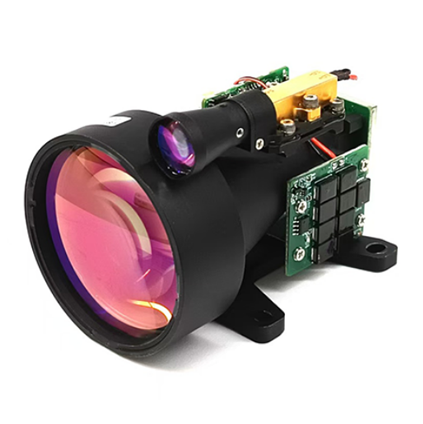

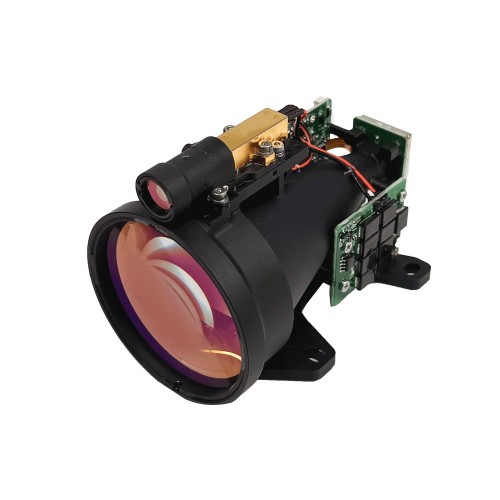

LSP-LRS-1510F laser range finder module is developed based on the 1535nmerbium glass laser independently developed by Lumispot. It adopts single pulse TOF ranging mode and has a maximum measuring range of >15km. It is composed of laser, transmitting optical system, receiving optical system and control circuit board, and communicates with host computer throughRS422 serial port,and provides host computer test software and communication protocol,which is convenient for user secondary development. lt has the characteristics of small size, light weight, stable performance, high impact resistance, first-class eye safety, etc.
Specifications
| Download | Part No. | Wavelength | Object Distance | Mrad | Continuous Ranging Frequency | Accuracy |
 Datasheet |
LSP-LRS-0310F-04 | 1535nm | ≥3km | ≤0.6 | 1~10Hz (Adjustable) | ≤1m |
| Datasheet |
LSP-LRS-0510F | 1535nm | ≥5km | ≤0.3 | 1~10Hz (Adjustable) | ≤1m |
| Datasheet |
LSP-LRS-0610F | 1535nm | ≥6km | ≤0.3 | 1~10Hz (Adjustable) | ≤1m |
| Datasheet |
LSP-LRS-0810F | 1535nm | ≥8km | ≤0.3 | 1~10Hz (Adjustable) | ≤1m |
| Datasheet |
LSP-LRS-1010F | 1535nm | ≥10km | ≤0.3 | 1~10Hz (Adjustable) | ≤1.5m |
| Datasheet |
LSP-LRS-1510F | 1535nm | ≥15km | 0.3±0.1 | 1~10Hz (Adjustable) | ≤1.5m |
