LSP-LD-0440
Product characteristics
LSP-LD-0440 is a newly developed laser sensor by Lumispot, which uses Lumispot's patented laser technology to provide highly reliable and stable laser output in various harsh environments. The product is based on advanced thermal management technology and has a small and lightweight design, meeting various military optoelectronic platforms with strict requirements for volume weight.
Specifications
| Parameter | Performance |
| Wavelength | 1064nm±5nm |
| Energy | ≥40mJ |
| Energy Stability | ≤±10% |
| Beam Divergence | ≤0.4mrad |
| Beam Jitter | ≤0.05mrad |
| Pulse Width | 15ns±5ns |
| Rangefinder performance | 200m-7000m |
| Ranging Frequency | Single、1Hz、5Hz |
| Rang Accuracy | ≤±5m |
| Designation Frequency | Central Frequency 20Hz |
| Designation Distance | ≥4000m |
| Laser Coding Types | Precise Frequency Code, Variable Interval Code, PCM Code, etc. |
| Coding Accuracy | ≤±2us |
| Communication Method | RS422 |
| Power Supply | 18-32V |
| Standby Power Draw | ≤5W |
| Average Power Draw(20Hz) | ≤25W |
| Peak Current | ≤3A |
| Preparation Time | ≤1min |
| Operating Temp Range | -40℃-70℃ |

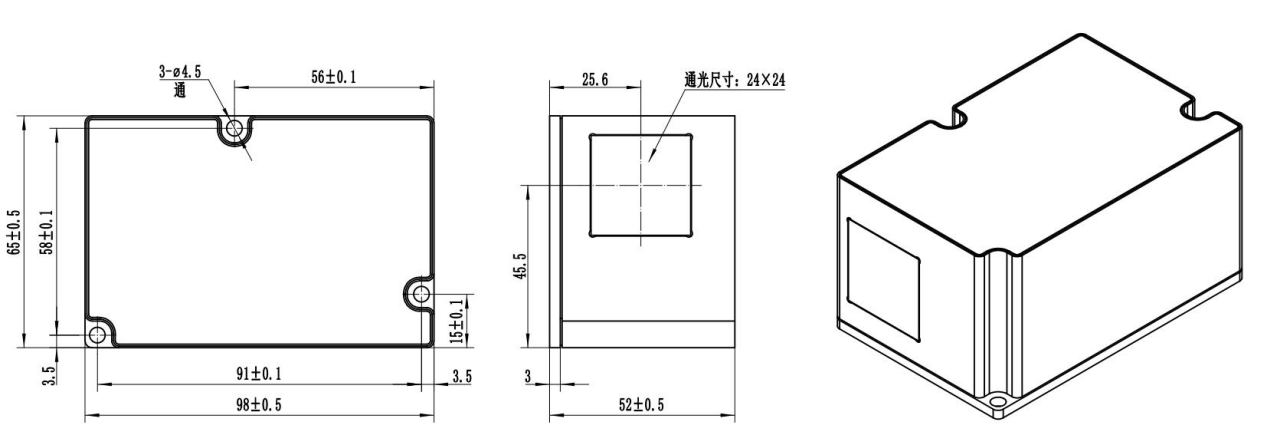

| Dimensions | ≤98mmx65mmx52mm |
| Weight | ≤550g |
*For a medium-sized tank (equivalent size 2.3m x 2.3m) target with a reflectivity greater than 20% and a visibility not less than 10km
Product Detail
