LSP-LD-0825

Common Aperture

No Temperature Control Required

Low-power Consumption

Mini Size and Lightening

High Reliability

High Environmental Adaptability


Product Detail

Product Tags

Product characteristics

LSP-LD-0825 is a newly developed laser sensor by Lumispot, which uses Lumispot's patented laser technology to provide highly reliable and stable laser output in various harsh environments. The product is based on advanced thermal management technology and has a small and lightweight design, meeting various military optoelectronic platforms with strict requirements for volume weight.

Specifications

Parameter Performance
Wavelength 1064nm±5nm
Energy ≥80mJ
Energy Stability ≤±10%
Beam Divergence ≤0.25mrad
Beam Jitter ≤0.03mrad
Pulse Width 15ns±5ns
Rangefinder performance 200m-10000m
Ranging Frequency Single、1Hz、5Hz
Rang Accuracy ≤±5m
Designation Frequency Central Frequency 20Hz
Designation Distance ≥8000m
Laser Coding Types Precise Frequency Code,
Variable Interval Code,
PCM Code, etc.
Coding Accuracy ≤±2us
Communication Method RS422
Power Supply 18-32V
Standby Power Draw ≤5W
Average Power Draw(20Hz) ≤50W
Peak Current ≤4A
Preparation Time ≤1min
Operating Temp Range -40℃-70℃

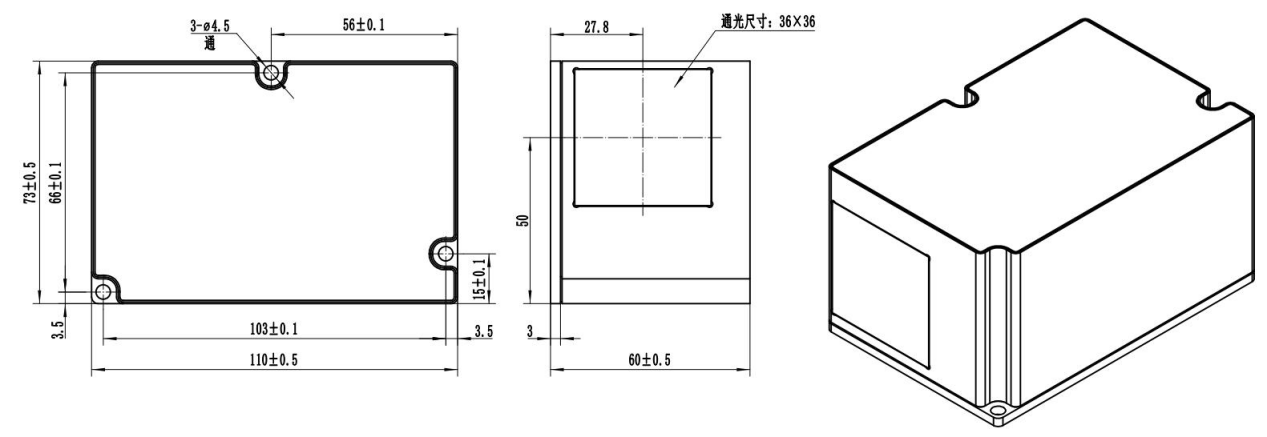

Dimensions ≤110mmx73mmx60mm
Weight ≤750g



*For a medium-sized tank (equivalent size 2.3m x 2.3m) target with a reflectivity greater than 20% and a visibility not less than 10km
