LST-LRE-23120

1064nm laser rangefinder module is developed based on Lumispot’s independently developed 1064nm solid-state laser. It adds advanced algorithms for remote ranging and uses pulse time-of-flight ranging. The product has the characteristics of national production, high cost-effectiveness, high reliability, and high impact resistance.

contact product expert

Product Detail

Product Tags

Product characteristics

Eye-Safe
Lightweight
High Precision
Low-power Consumption
Defense Grade Tempeterature
Resistance to high impact

Specifications

Optical	Parameter	Remarks
Wavelength	1064nm+2nm
Beam angle divergence	0.5+0.2mrad
Operating range A	300m~35km*	Big target
Operating range B	300m~23km*	Target size : 2.3x2.3m
Operating range C	300m~14km*	Target size : 0.1m²
Rang Accuracy	±5m
Operating frequency	1~10Hz
Voltage supply	DC18-32V
Operating temperature	-40℃~60℃
Storage temperature	-50℃~70°C
Communication interface	RS422

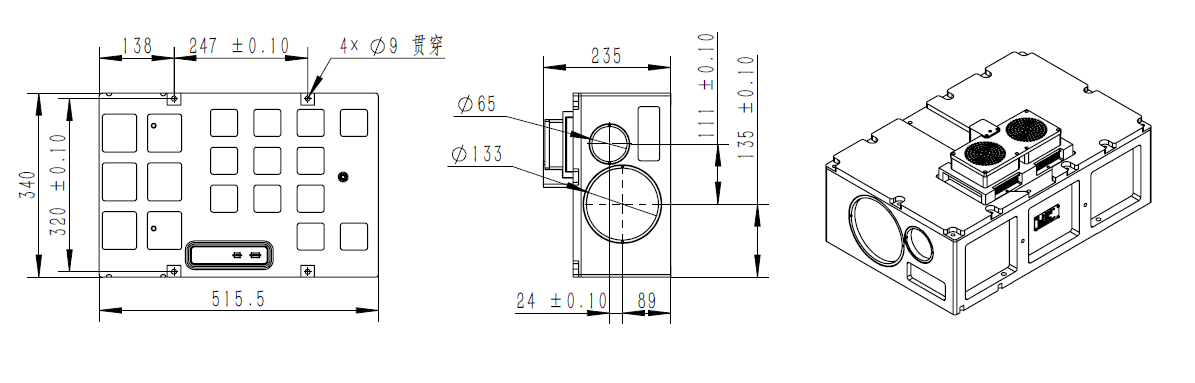

Dimension	515.5mmx340mmx235mm
Life-time	≥1000000 times

Note:* Visibility ≥25km, target reflectivity 0.2, divergence Angle 0.6mrad
