1. Introduction
With the continuous advancement of laser rangefinding technology, the dual challenges of accuracy and distance remain key to the development of the industry. To meet the demand for higher precision and longer measuring ranges, we proudly introduce our newly developed 5km laser rangefinder module. Equipped with cutting-edge technology, this module breaks traditional limitations, significantly improving both accuracy and stability. Whether for target ranging, electro-optical positioning, drones, safety production, or intelligent security, it offers an exceptional ranging experience for your application scenarios.
2. Product Introduction
The LSP-LRS-0510F (shortened as “0510F”) erbium glass rangefinder module utilizes advanced erbium glass laser technology, easily meeting the stringent accuracy requirements of various demanding scenarios. Whether for short-distance precision measurements or long-range, wide-area distance measurements, it delivers accurate data with minimal error. It also features advantages such as eye safety, superior performance, and strong environmental adaptability.
- Superior Performance

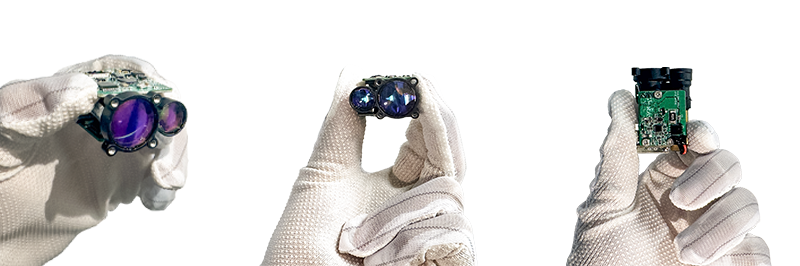

The 0510F laser rangefinder module is developed based on the 1535nm erbium glass laser independently researched and developed by Lumispot. It is the second miniaturized rangefinder product in the “Bai Ze” family. While inheriting the characteristics of the “Bai Ze” family, the 0510F module achieves a laser beam divergence angle of ≤0.3mrad, offering excellent focusing capability. This allows the laser to accurately target distant objects after long-range transmission, enhancing both long-distance transmission performance and distance measurement ability. With a working voltage range of 5V to 28V, it is suitable for different customer groups.
The SWaP (Size, Weight, and Power Consumption) of this rangefinder module is also one of its core performance metrics. The 0510F features a compact size (dimensions ≤ 50mm × 23mm × 33.5mm), lightweight design (≤ 38g ± 1g), and low power consumption (≤ 0.8W @ 1Hz, 5V). Despite its small form factor, it offers exceptional ranging capabilities:
Distance measurement for building targets: ≥ 6km
Distance measurement for vehicle targets (2.3m × 2.3m): ≥ 5km
Distance measurement for human targets (1.7m × 0.5m): ≥ 3km
Additionally, the 0510F ensures high measurement accuracy, with a distance measurement accuracy of ≤ ±1m across the entire measurement range.
- Strong Environmental Adaptability
The 0510F rangefinder module is designed to excel in complex usage scenarios and environmental conditions. It features outstanding resistance to shock, vibration, extreme temperatures (-40°C to +60°C), and interference. In challenging environments, it operates stably and consistently, maintaining reliable performance to ensure continuous and accurate measurements.
- Widely Used
The 0510F can be applied in various specialized fields, including target ranging, electro-optical positioning, drones, unmanned vehicles, robotics, intelligent transportation systems, smart manufacturing, smart logistics, safety production, and intelligent security.

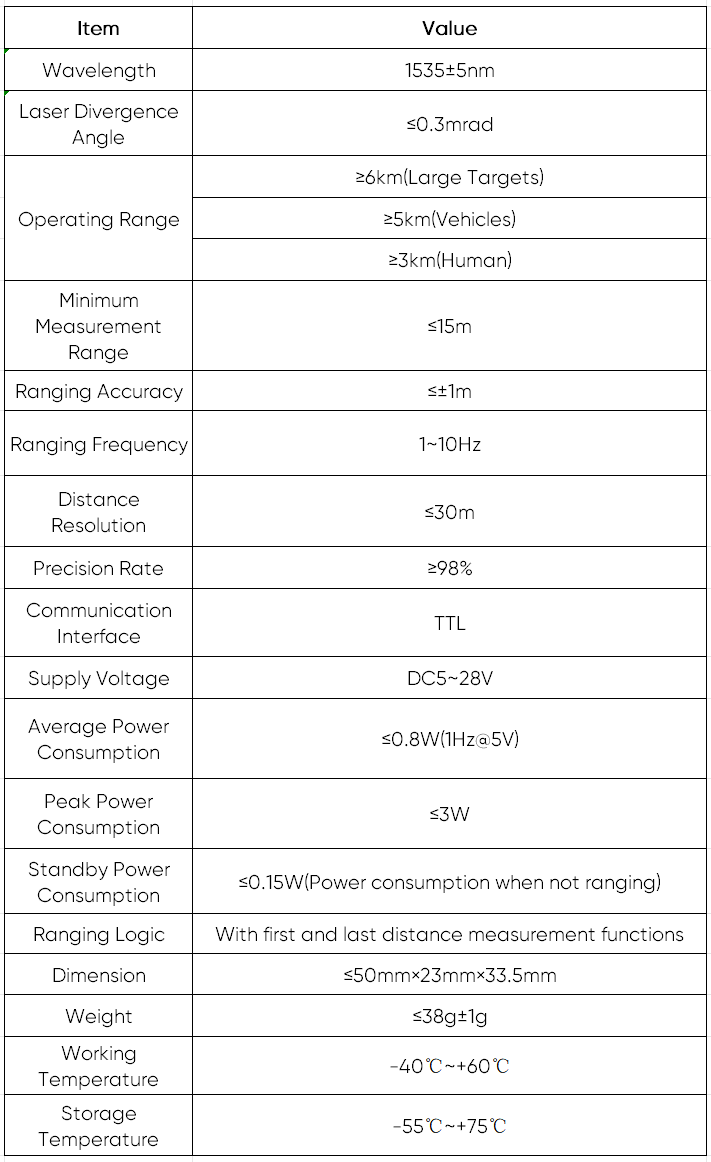

- Main technical indicators
3. About Lumispot
Lumispot Laser is a high-tech enterprise focused on providing semiconductor lasers, laser rangefinder modules, and specialized laser detection and sensing light sources for various specialized fields. The company’s product range includes semiconductor lasers with powers ranging from 405 nm to 1570 nm, line laser lighting systems, laser rangefinder modules with measurement ranges from 1 km to 90 km, high-energy solid-state laser sources (10mJ to 200mJ), continuous and pulsed fiber lasers, as well as fiber optic rings for medium and high precision fiber gyroscopes (32mm to 120mm) with and without skeletons.
The company’s products are widely used in industries such as LiDAR, laser communication, inertial navigation, remote sensing and mapping, counter-terrorism and explosion-proof, and laser illumination.
The company is recognized as a National High-tech Enterprise, a “Little Giant” specializing in new technologies, and has received several honors, including participation in the Jiangsu Provincial Enterprise Doctoral Gathering Program and Provincial and Ministerial Innovation Talent programs. It has also been awarded the Jiangsu Provincial High-Power Semiconductor Laser Engineering Technology Research Center and the Jiangsu Provincial Graduate Workstation. Lumispot has undertaken multiple provincial and ministerial-level scientific research projects during the 13th and 14th Five-Year Plans.
Lumispot places a strong emphasis on research and development, focuses on product quality, and adheres to the corporate principles of prioritizing customer interests, continuous innovation, and employee growth. Positioned at the forefront of laser technology, the company is committed to seeking breakthroughs in industrial upgrades and aims to become the “global leader in the laser-based specialized information field”.
Post time: Jan-14-2025
