I. Industry Milestone: 5km Rangefinding Module Fills Market Gap

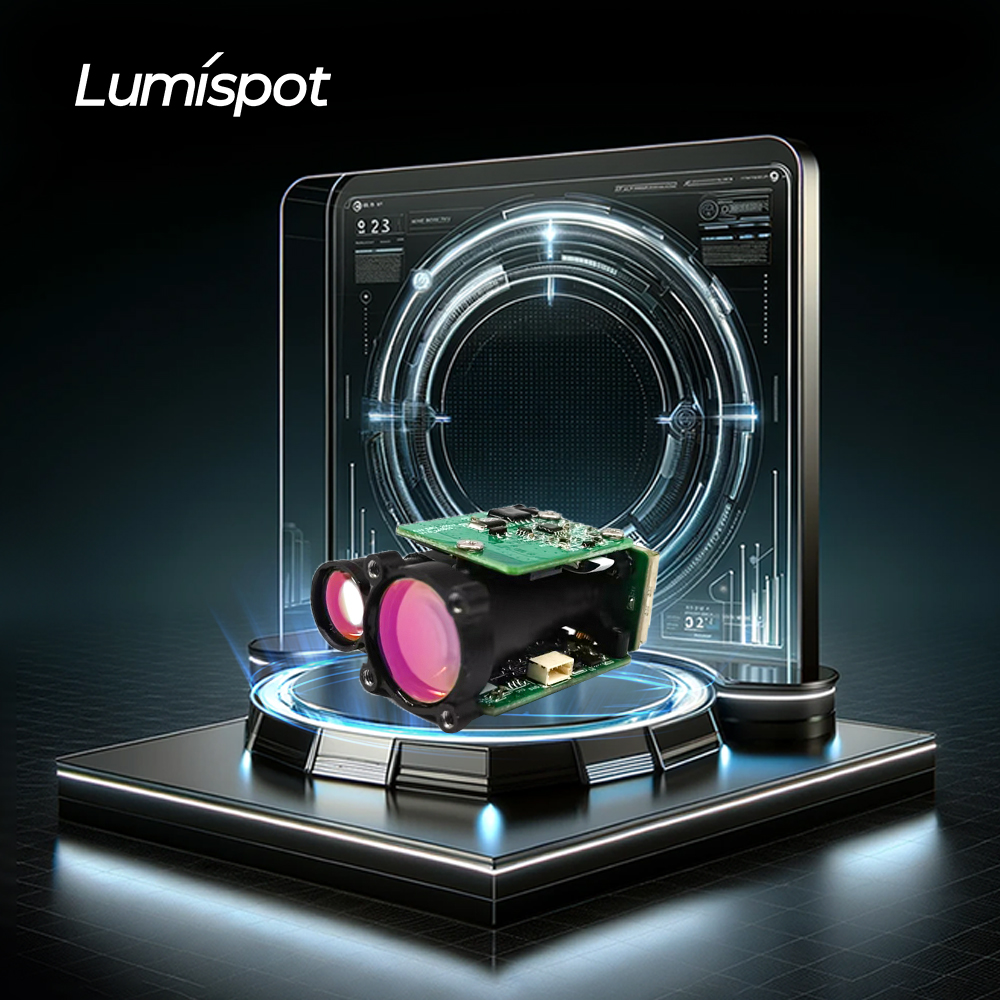

Lumispot has officially launched its latest innovation, the LSP-LRS-0510F erbium glass rangefinding module, which boasts a remarkable 5-kilometer range and ±1-meter accuracy. This breakthrough product marks a global milestone in the laser rangefinding industry. By combining a 1535nm erbium glass laser with adaptive algorithms, the module overcomes the limitations of traditional semiconductor lasers (such as 905nm), which are prone to atmospheric scattering at long distances. The LSP-LRS-0510F outperforms existing commercial devices, especially in UAV mapping and border security monitoring, earning it the reputation of “redefining the standard for long-range distance measurement.”
II. Erbium Glass Laser: From Military Tech to Civilian Use
At the core of the LSP-LRS-0510F is its erbium glass laser emission module, which offers two major advantages over conventional semiconductor lasers:
1. Eye-Safe Wavelength: The 1535nm laser complies with Class 1 eye safety standards, enabling safe deployment in public environments without additional protective measures.
2. Superior Anti-Interference Capability: The laser can penetrate fog, rain, and snow 40% more effectively, significantly reducing false alarms.
By optimizing pulse energy (up to 10mJ per pulse) and repetition rate (adjustable from 1Hz to 20Hz), Lumispot ensures measurement accuracy while reducing the module size to one-third that of traditional equipment — making it ideal for integration into compact UAVs and security robots.
III. Extreme Environment Resilience: The Secret to -40℃ to 60℃ Stability
To meet the demanding needs of outdoor and military applications, the LSP-LRS-0510F introduces several innovations in thermal management and structural design:
① Dual-Redundancy Thermal Control: Equipped with both a thermoelectric cooler (TEC) and passive heat sink, the laser can start up in ≤3 seconds even at -40℃.
② Fully Sealed Optical Cavity: IP67 protection and nitrogen-filled housing prevent mirror condensation in high humidity.
③ Dynamic Calibration Algorithm: Real-time compensation for temperature-induced wavelength drift ensures accuracy remains within ±1m across the entire temperature range.
④ Proven Durability: According to third-party testing, the module operated continuously for 500 hours under alternating desert heat (60℃) and arctic cold (-40℃) with no performance degradation.
IV. Application Revolution: Boosting Efficiency in UAVs and Security
The LSP-LRS-0510F is reshaping technical pathways across multiple industries:
① UAV Mapping: Drones equipped with the module can complete terrain modeling within a 5km radius in a single flight — achieving 5x the efficiency of traditional RTK methods.
② Smart Security: When integrated into perimeter defense systems, the module enables real-time distance tracking of intrusion targets, with a false alarm rate reduced to 0.01%.
③ Power Grid Inspection: Combined with AI image recognition, it accurately identifies tower tilt or ice thickness, with centimeter-level detection precision.
④ Strategic Partnerships: Lumispot has formed alliances with leading drone manufacturers and plans to begin mass production in Q3 2024.
V. Full-Stack Innovation: Hardware to Algorithms
The Lumispot team attributes the success of the LSP-LRS-0510F to three synergistic innovations:
1. Optical Design: A custom aspheric lens system compresses the beam divergence angle to 0.3mrad, minimizing long-distance beam spread.
2. Signal Processing: An FPGA-based Time-to-Digital Converter (TDC) with 15ps resolution delivers 0.2mm distance resolution.
3. Smart Noise Reduction: Machine learning algorithms filter out interference from rain, snow, birds, etc., ensuring a >99% valid data capture rate.
These breakthroughs are protected by 12 international and domestic patents, covering optical, electronic, and software technologies.
VI. Market Outlook: Gateway to a Trillion-Yuan Smart Sensing Ecosystem
With global UAV and smart security markets growing at over 18% CAGR (according to Frost & Sullivan), Lumispot’s 5km rangefinding module is poised to become a critical component of the intelligent sensing ecosystem. Experts note that the product not only fills a key gap in long-range, high-precision distance measurement but also promotes multi-sensor integration via its open API, supporting future applications in autonomous driving and smart cities. Lumispot also plans to release a 10km-class rangefinder by 2025, solidifying its leadership in advanced laser sensing.
The launch of the LSP-LRS-0510F marks a pivotal moment for Chinese enterprises, transitioning from followers to standard setters in laser core component technology. Its significance lies not only in its advanced specifications but also in bridging the gap between lab-scale innovation and large-scale application, injecting new momentum into the global intelligent hardware industry.
Post time: Apr-14-2025
